Backflow Testing: What Homeowners Should Ask

Backflow testing confirms that a device protecting the drinking-water supply is operating within its required range. It is not the same as turning on a sprinkler zone and looking for a leak. A homeowner can prepare useful information and recognize warning signs, but local rules may require a certified tester, a filed report, or a specific device type.

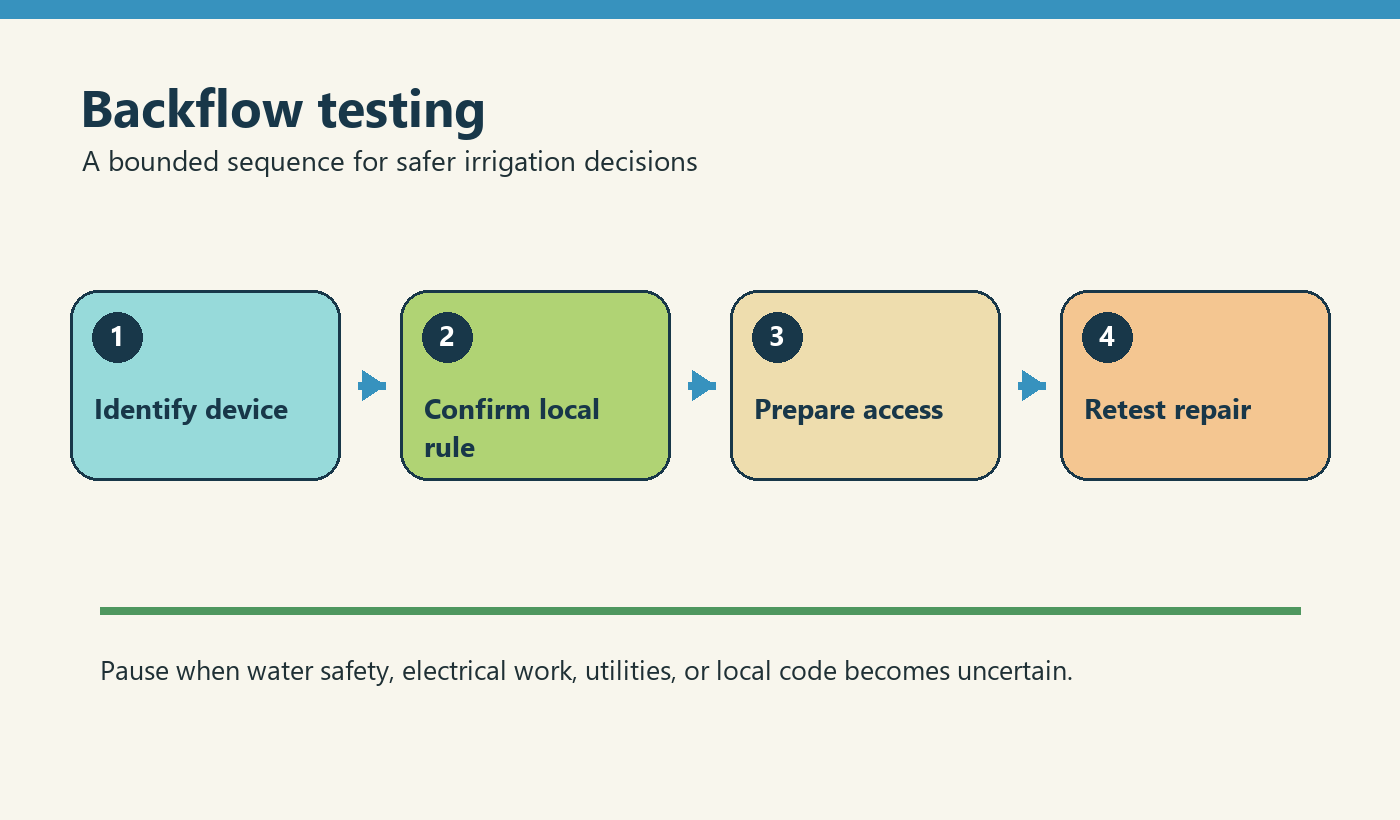

Start by identifying the installed device and the authority that governs the connection. A pressure vacuum breaker, reduced-pressure assembly, double-check assembly, and atmospheric vacuum breaker have different installation limits and testing expectations.

Confirm what the local authority requires

Call the water utility, building department, or cross-connection program before booking service or buying replacement parts. Ask whether annual testing is required, whether the report must be filed by the tester, and whether the irrigation connection has any special hazard classification.

The device label, installation location, and downstream use all matter. A system that can contact fertilizer, pond water, reclaimed water, or chemical injection may need a higher level of protection than a simple ornamental zone.

Prepare the tester visit

Clear access to the assembly, valve box, and shutoff valves. Remove mulch, storage items, or vegetation that blocks the device. Locate the irrigation controller and identify which zone valve supplies the connection if the layout is known.

Do not disassemble test cocks, check valves, or relief ports before the appointment. A small missing cap or damaged test cock can turn a routine inspection into a repair visit. If the device is outdoors, note recent freezes, standing water, or evidence of discharge from a relief opening.

Have prior reports available when possible. A record of the last test date, device model, repairs, and recurring failures gives the tester useful context without substituting for the new test.

Understand the result before approving a repair

A pass means the tested assembly met the applicable performance criteria at that time. It does not prove that every irrigation valve, pipe, or controller is healthy. A failure should identify the affected check, relief component, shutoff, or installation condition.

Questions to ask a tester or contractor

• Which component failed, and what measurement caused the failure?
• Does the quoted repair include a retest and filing of the report when required?
• Is the existing installation height, drainage route, and access location still acceptable?
• Will the irrigation system need to be shut down, and for how long?
• Does the work require a permit or notice to the water authority?

Ask for the model number and serial number to appear on the report. Keep the completed report with irrigation records, not only in an email thread. It is useful during a sale, after a winter repair, or when a utility asks for proof of compliance.

Warning signs between scheduled tests

Water from a relief opening, a vent that continues to drip after shutdown, cracked brass or plastic, missing test-cock caps, or a device that sits in a flooded enclosure all deserve attention. Do not cap a relief outlet to hide a discharge. The outlet is a safety feature and needs a safe, visible drainage path.

If water quality, chemical injection, or the water source changes, check the local requirement again. The safest decision is to pause irrigation work and obtain qualified guidance when potable-water protection is uncertain.

Homeowner checklist

• Record the device type, model, location, and last test date.
• Confirm the local testing and report-filing rule.
• Clear access without altering the device before the visit.
• Read the failed-component explanation before approving a repair.
• Keep the final report with the irrigation layout and repair record.

What to verify for this topic

For this subject, begin with device type, local filing rules, test access, failed measurements, repair scope, and retest requirements. Those details determine whether the next step is a schedule adjustment, a cleaning or repair task, a design change, or a request for qualified service. Do not infer a cause from one visual clue. Compare the affected area with a normal area, and compare the start of the run with the far end when water travels through a line.

The safe boundary is to prepare the site and ask precise questions without disassembling or bypassing the backflow assembly. If the system cannot be isolated, the measurement cannot be trusted, or the proposed action would change a regulated connection, leave the equipment in a safe state and document the condition for the person who will complete the work.

Work through the decision in a repeatable order

The most useful way to apply this guidance is to separate observation, measurement, adjustment, and verification. Start by writing down the current symptom and the part of the system affected. Then identify the water source, the zone or component involved, and any recent change such as a repair, new planting, weather event, fertilizer application, or controller reset. This prevents a familiar-looking symptom from being treated with the wrong fix.

Use one controlled change at a time. If you change a nozzle, runtime, pressure setting, filter, sensor threshold, or pipe route, record the change before testing again. When several variables are changed together, it becomes difficult to tell whether the improvement came from the repair or whether a new problem was introduced. A short written record is usually enough: date, zone, starting condition, measurement, change made, and result.

Stage	What to record	What a useful result looks like
Observe	Location, timing, weather, recent work, and affected plants or equipment	The symptom can be reproduced or described precisely
Measure	Pressure, flow, moisture, runtime, output, or equipment status as relevant	The measurement is taken at a comparable point each time
Adjust	One repair, setting, cleaning step, or schedule change	The change addresses a plausible cause, not only the visible symptom
Verify	Near and far points, startup and shutdown, and the next normal cycle	Water reaches the intended root zone without unsafe behavior or waste

Use the field check before buying parts

Before replacing equipment, inspect the simplest causes that fit the symptom. Confirm that the correct valve, filter, sensor, controller program, shutoff, or power source is being tested. Look for leaks, clogged outlets, damaged insulation, unusual pressure change, runoff, standing water, or a setting that was changed during earlier work. A replacement part cannot correct an undersized zone, a blocked filter, a bad route, or a schedule that does not match the site.

For a meaningful comparison, test under normal operating conditions. A pressure reading with every zone closed may not describe the pressure while the zone is running. A soil check at the surface may not describe the moisture at root depth. An app status may not prove that a valve opened. Repeat the check at representative near, middle, and far points whenever the system has a long run or different elevations.

Know when to pause

Stop the work when water can reach a drinking-water line, when an electrical enclosure or pump circuit is wet or energized, when excavation reaches an unknown utility or obstruction, when a pressurized component cannot be isolated, or when a repair would require bypassing a safety device. Also pause when the proposed change could create runoff toward a building, road, drain, well, or neighboring property. Keep the system in its safest known state and obtain qualified local guidance where code, licensing, testing, or equipment instructions apply.

Keep a small maintenance record

Save the model numbers, zone names, photos, measurements, settings, repair dates, and next review date. Note what did not work as well as what did. This record helps a future technician start with evidence, supports seasonal adjustments, and makes it easier to notice a gradual decline in flow or coverage. Recheck the system after major weather, landscaping, water-source, controller, or equipment changes.

Practical close-out checklist

• Write the symptom and the affected zone or component before changing anything.
• Measure under normal operating conditions and compare representative locations.
• Make one controlled change and record the date, setting, or part used.
• Run a verification cycle and inspect both the source side and the far end.
• Pause for electrical, potable-water, utility, pressure, structural, or code uncertainty.

References

These sources provide general water-efficiency, irrigation-management, controller, drip-irrigation, and backflow context. Local plumbing, electrical, water-use, excavation, and landscape rules can be stricter; manufacturer instructions and the applicable local authority control the final decision.



• U.S. EPA WaterSense: Watering Tips — practical guidance for efficient landscape watering.
• U.S. EPA WaterSense: WaterSense Labeled Controllers — context for weather-based and sensor-informed control.
• USDA NRCS: Irrigation Water Management — soil, water application, and management considerations.
• Penn State Extension: Drip Irrigation — drip-system layout, operation, and maintenance context.
• Irrigation Association: Backflow Prevention — general cross-connection and backflow-protection context.
